TXMC387

Conduction Cooled 2 Channel 10GBASE-T Ethernet

  • Conduction Cooled single-width XMC module
  • 2 channel 10GBASE-T / 1000BASE-T / 100BASE-TX
  • Rear I/O via P16

Last-Time-Buy date:

30/11/2021

Product status: Discontinued

Operating Temperature Range -40 °C to +85 °C RoHS compliant

The TXMC387 is a Conduction Cooled Switched Mezzanine Card (CCXMC) compatible module providing a two channel Ethernet 100BASE-TX / 1000BASE-T / 10GBASE-T interface.

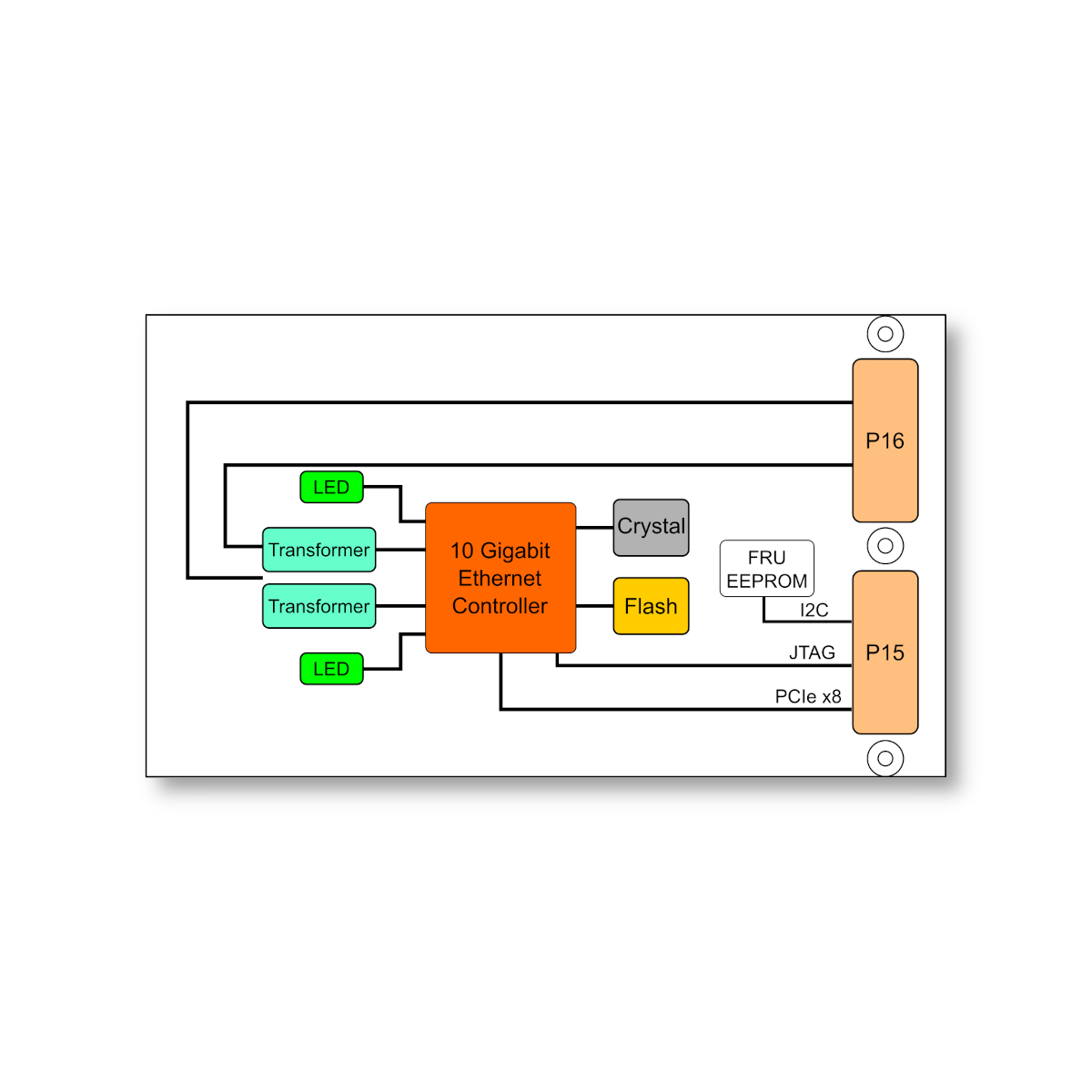

The XMC-Connector P15 provides access to the Intel X540 dual port 10GbE controller via an x8 PCIe link. Both Ethernet interfaces support 100, 1000 Mbit/s and 10 Gbit/s transmission rates at full duplex operation. The controller is equipped with a 16 Mbit serial flash memory which is accessed by hardware at power-up, which has a firmware area and which can be accessed by software.

The two Ethernet interfaces of the TXMC387 are capable of performing an auto-negotiation algorithm which allows the link-partners to determine the best link parameters. The Ethernet controller on the TXMC387 is user configurable via configuration and register accesses over the PCIe interface.

LEDs indicate the different network activities.

The TXMC387 routes both Ethernet ports which are galvanically isolated from the Ethernet controllers to the XMC back I/O P16 connector. On the TXMC387-10R the Ethernet ports are mapped in the X12d range specified in VITA46.9 standard. The TXMC387-20R maps both Ethernet ports in the X8d range specified in VITA46.9 standard.

The module meets the requirements to operate in extended temperature range from -40°C to +85°C (Card Edge Temperature).

Software Support:

  • Software support for Intel X540 at www.intel.com
  • For operating systems not supported by Intel®, please contact TEWS.
Mechanical Interface Conduction Cooled Switched Mezzanine Card (CCXMC) Interface conforming to ANSI/VITA 42.0-2008 (Auxiliary Standard)
Standard single-width (143.75mm x 74mm)
Electrical Interface PCI Express (Base Specification 2.1) up to x8 compliant interface conforming to ANSI/VITA 42.3-2006 (XMC PCI Express Protocol Layer Standard)
10 Gigabit Ethernet Controller X540 (Intel)
IPMI resource FRU Data EEPROM M24C02 (STMicroelectronics)
Number of Interfaces 2
Link 100Base-TX / 1000Base-T / 10GBase-T
I/O Connector XMC P16 back I/O (Samtec ASP-105885-01 or compatible)
Power Requirements 450mA typical @ VPWR = +12V DC (no link)
app. -40mA per 100 MBit/s link
app. additional 65mA per 1 Gbit/s link
app. additional 300mA per 10 Gbit/s link1000mA typical @ VPWR = +5V DC (no link)
app. -80mA per 100 Mbit/s link
app. additional 175mA per 1 Gbit/s link
app. additional 800mA per 10 Gbit/s link1mA typical @ +3.3V DC
Temperature Range Operating: -40 °C to +85 °C (Card Edge Temperature)
Storage: -40 °C to +85 °C
MTBF 592 000 h (MIL-HDBK-217F/FN2 GB20°C)
Weight 88 g
Humidity 5 – 95% non-condensing

PRODUCT VARIATIONS

TXMC387-10R

Discontinued

2 Channel 10GBASE-T Ethernet, P16 I/O (X12d)

2 channel 10GBASE-T Ethernet; P16 back I/O (X12d / per VITA46.9); Conduction Cooled

TXMC387-20R

Discontinued

2 Channel 10GBASE-T Ethernet, P16 I/O (X8d)

2 channel 10GBASE-T Ethernet; P16 back I/O (X8d / per VITA46.9); Conduction Cooled
