TPMC533

32x ADC, 16x/0x DAC and 8x Digital I/O

  • Standard single-width PMC module
  • 32 channel analog input
    • True differential
    • 16 bit A/D converter
    • Simultaneous sampling
    • ±5 V and ±10 V ranges
    • Sampling rate up to 200 ksps
    • Oversampling capability with digital filter
    • Sequencer mode available
  • 16 channel analog output (optional)
    • Single-ended
    • 16 bit D/A converter
    • Simultaneous update
    • 0 V … 5 V, 0 V … +10 V, 0 V … +10.8 V, ±5 V, ±10 V and ±10.8 V ranges
    • Typ. settling time of 10 μs
    • Sequencer mode available
  • 8 channel digital I/O
    • Tri-state 5 V-tolerant TTL
    • Pull resistors to 3.3 V, 5 V, GND and floating
    • Input event detection
  • DMA support
  • Factory calibration data available in EEPROM
  • Analog I/O hardware correction function available
  • external synchronization via digital I/O lines
    and trigger signals via P14 I/O
  • Front panel I/O (HDRA100 type connector)

Product status: Active

Operating Temperature Range -40 °C to +85 °C RoHS compliant

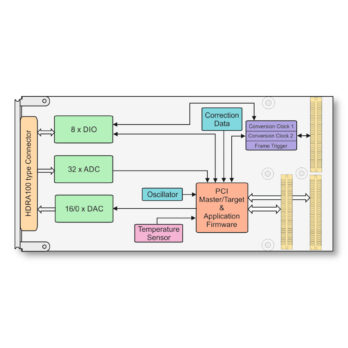

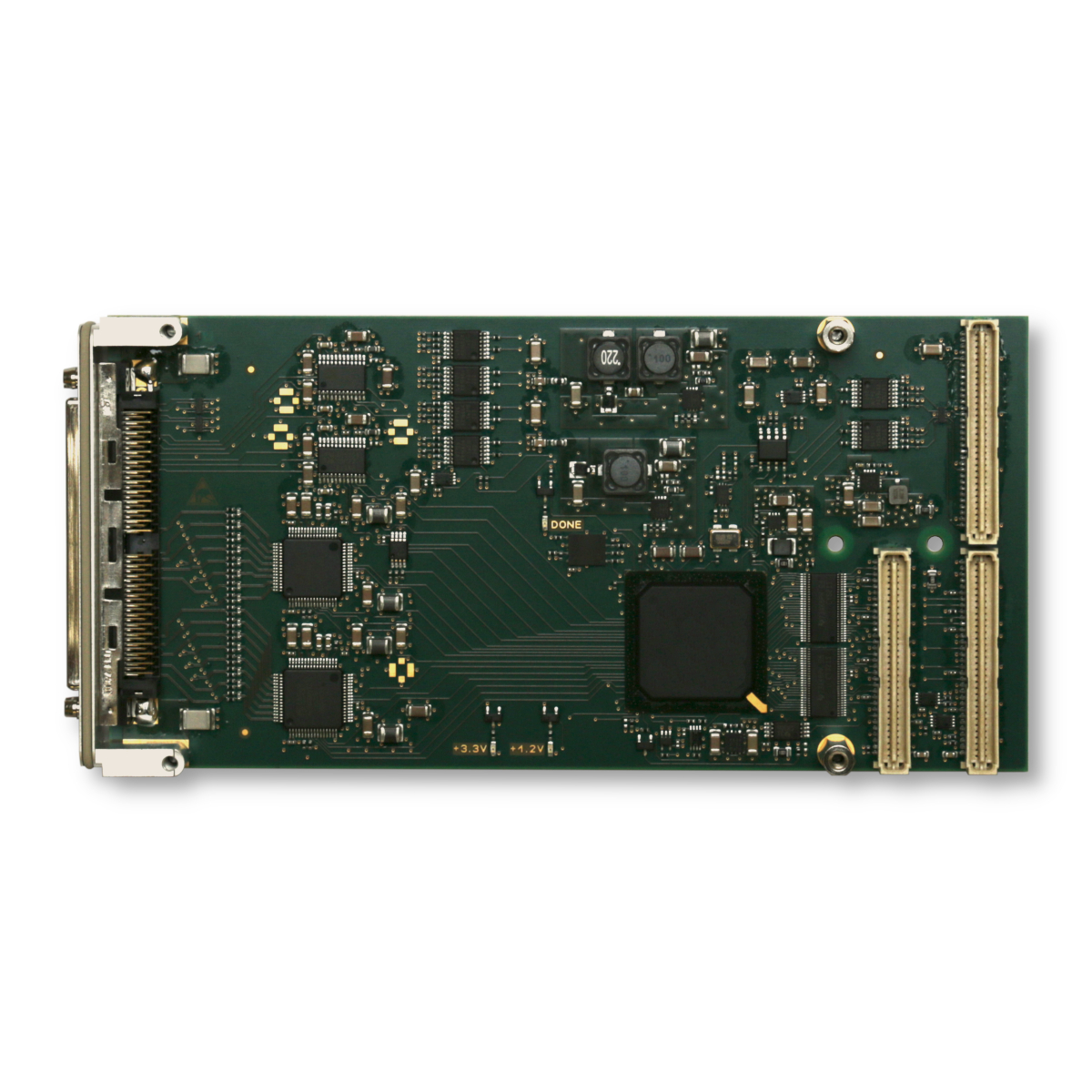

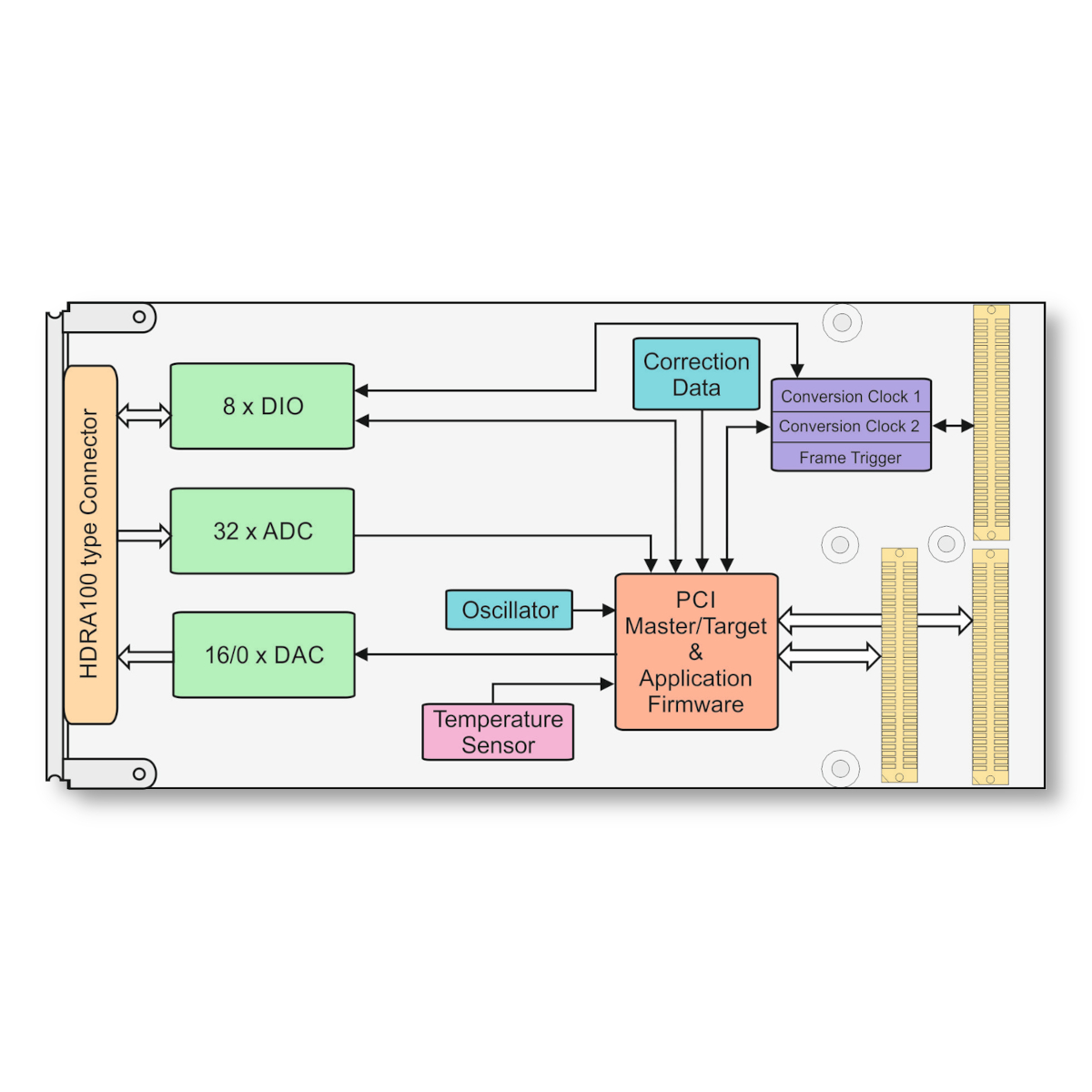

The TPMC533 is a standard single-wide PCI Mezzanine Card (PMC) compatible module providing 32 channels of simultaneous sampling true differential bipolar 16bit analog input, 16 or no channels of simultaneous update single-ended unipolar/bipolar 16bit analog output and 8 channels of tri-state 5V-tolerant TTL digital input/output. All signals are accessible through a HDRA100 type front I/O connector.

The PMC-Connectors P11 and P12 provide access to the control logic via a 32bit 33MHz PCI interface.

The ADCs offer true differential inputs with software selectable ±5V and ±10V bipolar input voltage ranges (one common setting for all eight channels of each ADC). The maximum sample rate of the ADCs is 200kSPS and they offer an oversampling capability with digital filter.

The DACs offer software selectable 0-5V, 0-10V, 0-10.8V, ±5V, ±10V and ±10.8V output voltage ranges (individual setting for each of the four channels of each DAC). The settling time is typically 10µs and the DAC channels are capable to drive a load of 2kohm, with a capacitance up to 4000pF.

Each TPMC533 is factory calibrated. The correction data is stored in an on-board serial EEPROM unique to each PMC module. These correction values can be used to perform a hardware correction of every analog-to-digital and digital-to-analog conversion. Additionally, measurement data read out of a temperature sensor on-board can be used to compensate temperature dependent errors.

The TPMC533 provides two Sequencers, one for AD Conversions and another one for DA Conversions. To perform periodic simultaneous conversions the conversion rates are programmable and can be output to other modules on PMC Back I/O Connector P14 or Front I/O Connector DIO pins for synchronization purposes. The TPMC533 can also operate as a target which means that the conversion rates can be sourced from P14 or Front I/O, created by another module.

A Frame Trigger signal, which can also either be generated by the TPMC533 and output on P14/Front I/O or generated by other modules and input from P14/Front I/O, can be used to synchronize ADC frames and DAC frames.

The signals on PMC Back I/O Connector P14 are ESD protected and driven or read by tri-state 5V-tolerant TTL buffers.

To be able to collect ADC frames and to output DAC frames the TPMC533 provides input and output FIFOs. Data transfer on the PCI bus is handled by TPMC533 initiated block transfer mode DMA cycles with minimum host/CPU intervention.

Mechanical Interface

PCI Mezzanine Card (PMC) Interface confirming to IEEE P1386/P1386.1
Standard single-wide

Electrical Interface

PCI Rev. 3.0 compatible; 33MHz / 32bit PCI; Initiator/Target; 3.3V and 5V PCI Signaling Voltage

FPGA

Spartan-6 (Xilinx)

ADC

AD7609 (Analog Devices)

DAC

AD5754R (Analog Devices)

Digital I/O

74LVT126 (NXP)

FPGA Configuration

32 Mbit Serial Flash
W25Q32JV (Winbond)

Correction Data

M93C86-W (ST)

Number of ADC Channels

32

Input Type

True bipolar differential

Input Voltage Range

±5V and ±10V
(one common setting for all eight channels of each ADC)

Sample Rate

200kSPS

Number of DAC Channels

TPMC533-10R: 16
TPMC533-20R: 0

Output Type

Unipolar/bipolar single-ended

Output Voltage Ranges

±5V, ±10V, ±10.8V, +5V, +10V and +10.8V
(individual setting for each of the four channels of each DAC)

Settling Time

10µs

Number of DIO Channels

8

Driver Level

LVTTL (3.3V)

Receiver

5V tolerant

Source Current

15mA

Sink Current

6mA

Front I/O

100-pin HDRA (Honda HDRA-EC100LFDT-SL+ or compatible)

P14 Back I/O

64-pin Mezzanine Connector (Molex 71436-2864 or compatible)

Power Requirements

550mA max. @ +5V DC (without I/O Load)

Temperature Range

Operating: -40°C to +85°C
Storage: -40°C to +85°C

Weight 1)

72.5 g to 72.8 g

Humidity

5 – 95% non-condensing

MTBF 1)

487 000 h to 497 000 h



1) depends on variant, for further details see User Manual

PRODUCT VARIATIONS

TPMC533-10R

32 Analog Inputs (16 bit), 16 Analog Outputs (16 bit), 8 TTL I/O

32 differential analog inputs; 16 bit; simultaneous sampling; programmable ranges up to +/-10.8 V; 16 analog outputs; 16 bit; simultaneous update; programmable ranges up to +/-10 V; 8 TTL I/O; factory calibrated; Front I/O via HDRA100 connector

TPMC533-20R

32 Analog Inputs (16 bit), 8 TTL I/O

32 differential analog inputs; 16 bit; simultaneous sampling; programmable ranges up to +/-10.8 V; 8 TTL I/O; factory calibrated; Front I/O via HDRA100 connector
