TAMC261

PMC-Carrier for MTCA.4 Rear-I/O

  • Cost effective solution to provide I/O in AMC and MTCA.4 environment
  • Flexible I/O (TEWS offers a wide range of I/O PMCs)
  • Supports one single-width PMC
  • Provides access to the PMC rear I/O (P14)
  • IPMI compliant MMC with temperature monitoring and hot-swap support
  • PCI ip to 64 bit, 66 MHz
  • PCI-X up to 64 bit, 133 MHz
  • Available as mid- and full-size AMC

Product status: Not Recommended for New Designs

Operating Temperature Range -40 °C to +85 °C RoHS compliant

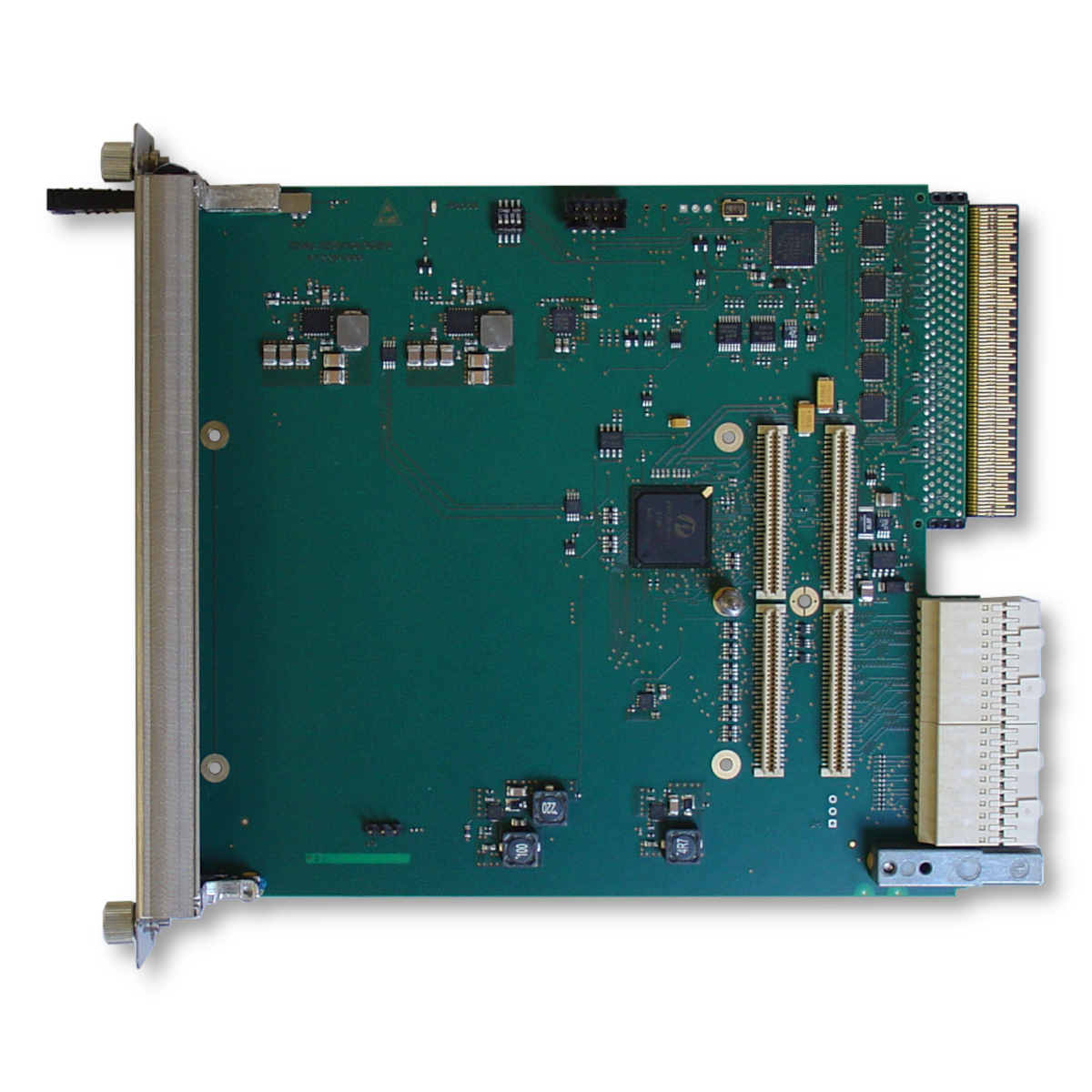

The TAMC261 is a standard Mid-Size/Full-Size AMC.1 (PCI-Express) and MTCA.4 compliant PMC carrier module that provides one slot for a single-width PMC, used to build modular, flexible and cost effective I/O solutions for applications in process control, medical systems, telecommunication and traffic control.

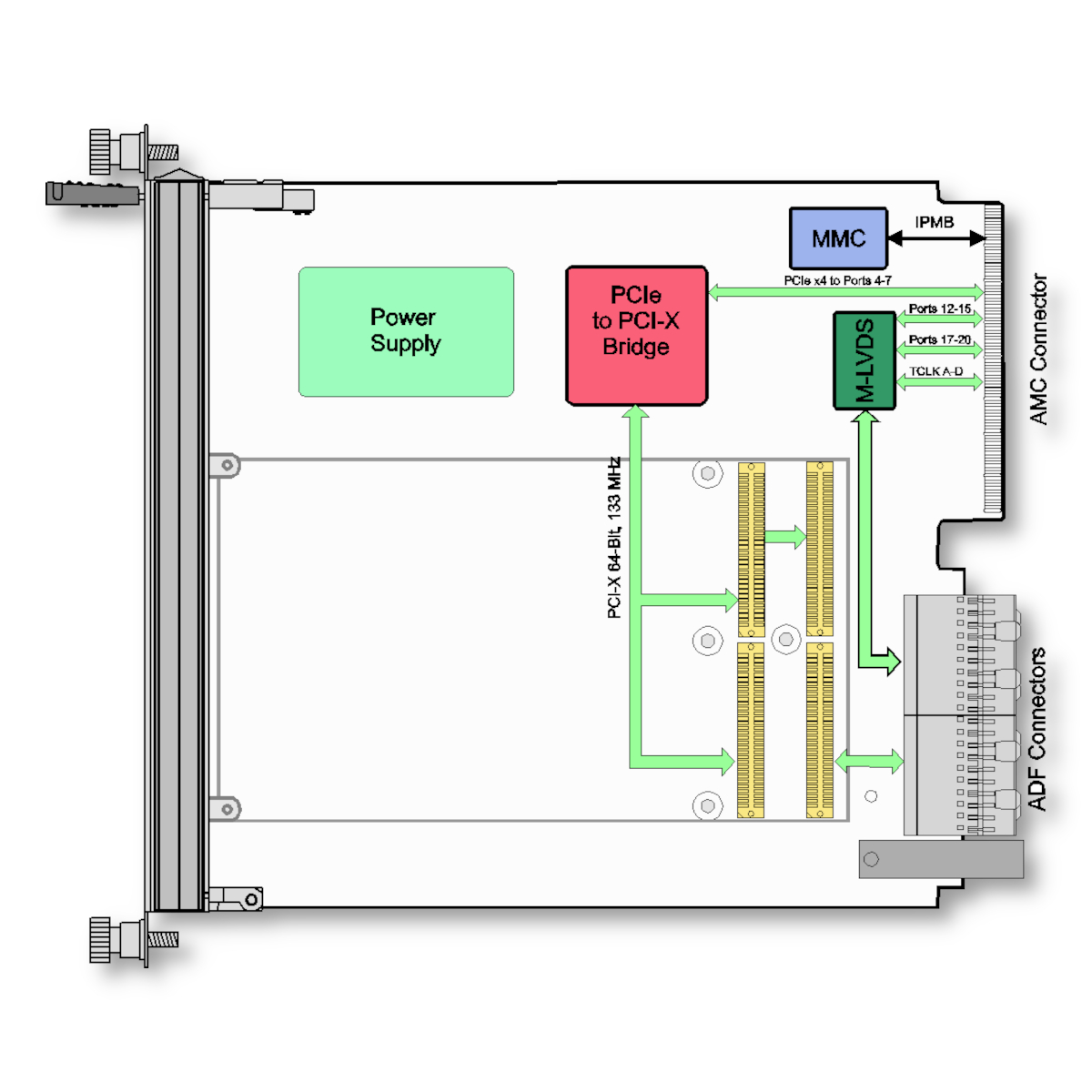

A PI7C9X130 PCIe-to-PCI bridge provides the connection between primary PCIe link and the secondary PMC slot. The bridge controls all PCI accesses and the frequency for the PMC access. PCI is supported up to 64-bit @66MHz and PCI-X is supported up to 64-bit @133MHz.

The TAMC261 supports front panel I/O, alternatively the MTCA.4 interface provides access to the PMC P14 back I/O lines. According to MTCA.4, the TAMC261 provides two 30-pair ADF connectors at the Zone 3 interface (Rear I/O) that provide access to all P14 back I/O lines via a compatible µRTM.

The TAMC261-2xR additionally provides M-LVDS transceivers connected to AMC port 12-15, port 17-20 and the TCLKA-D. All control and data lines of the M-LVDS transceivers are routed to the zone 3 interface, enabling a mounted PMC to access the AMC port signals via the µRTM.

The TAMC261 is a versatile solution to upgrade well known legacy I/O solutions to a high performance form factor.

According to AMC.0, the TAMC261 provides an IPMI compliant Module Management Controller (MMC) with temperature monitoring and hot-swap support.

Logic Interface Advanced Mezzanine Card (AMC) Interface confirming to PICMG® MTCA.4 (MicroTCA Enhancements for Rear I/O and Precision Timing)
TAMC261-x1R: Double-width / Full-size Module
TAMC261-x0R: Double-width / Mid-size Module
Electrical Interface PCI Express x4 Link conforming to PICMG® AMC.1 R1.0 (PCI Express® on AdvancedMCTM)
AMC.1 Fabric Type 4
IPMI Version 1.5
Front Panel LEDs Blue Hot-Swap LED
Red Failure Indication LED (LED1)
Green Board OK / PMC Activity LED (LED 2)
PCI/PCI-X to PCIe Bridge PI7C9X130 (Pericom)
Number of PMC Slots 1
Supported PCI Data Width 32 bit / 64 bit
Supported PCI Clock Frequency 33 MHz / 66 MHz (PCI)
100 MHz / 133 MHz (PCI-X)
PCI I/O Signaling Voltage 3.3V (5V tolerant)
PMC I/O Access Front Panel I/O
Rear-I/O: all 64 signals are accessible via a compatible µRTM
Power Requirements Management Power: 30mA typical @ +3.3V DC (without PMC)
Payload Power: 150mA typical @ +12V DC (without PMC)
max. Current Draw as per Module Current Requirements record: 2.5A
Temperature Range Operating: -40°C to +85°C
Storage: -40°C to +85°C
MTBF 1) 254000 h to 281000 h
Weight 209 g
Humidity 5-95% non-condensing

1) depends on variant, for further details see User Manual

PRODUCT VARIATIONS

TAMC261-10R

1 Slot PMC Carrier, Double Mid-Size, MTCA.4 Rear-I/O

1 Slot PMC Carrier; Double Mid-Size; 64.bit PCI-X @ 133 MHz; 3.3 V (5 V tolerant) PCI I/O signaling voltage; IPMI V1.5 support; MTCA.4 Rear-I/O; Front Panel LEDs

TAMC261-11R

1 Slot PMC Carrier, Double Full-Size, MTCA.4 Rear-I/O

1 Slot PMC Carrier; Double Full-Size; 64.bit PCI-X @ 133 MHz; 3.3 V (5 V tolerant) PCI I/O signaling voltage; IPMI V1.5 support; MTCA.4 Rear-I/O; Front Panel LEDs

TAMC261-20R

1 Slot PMC Carrier, Double Mid-Size, MTCA.4 Rear-I/O; M-LVDS transceivers

1 Slot PMC Carrier; Double Mid-Size; 64.bit PCI-X @ 133 MHz; 3.3 V (5 V tolerant) PCI I/O signaling voltage; IPMI V1.5 support; MTCA.4 Rear-I/O with additional M-LVDS transceivers; Front Panel LEDs

TAMC261-21R

1 Slot PMC Carrier, Double Full-Size, MTCA.4 Rear-I/O; M-LVDS transceivers

1 Slot PMC Carrier; Double Full-Size; 64.bit PCI-X @ 133 MHz; 3.3 V (5 V tolerant) PCI I/O signaling voltage; IPMI V1.5 support; MTCA.4 Rear-I/O with additional M-LVDS transceivers; Front Panel LEDs
