The TA116 cable is a 50-pin cable that provides a direct connection to the TEWS product range with MDR50 type connectors in the front panel (for example TPMC151, TPMC160 and more). It establishes a one to one connection between the MDR50 type connectors at both sides of the shielded cable. Always two wires are constructed as twisted pairs (1 and 26, 2 and 27, &, 25 and 50).
The permissible maximum voltage for the TA116 is 30 V DC.

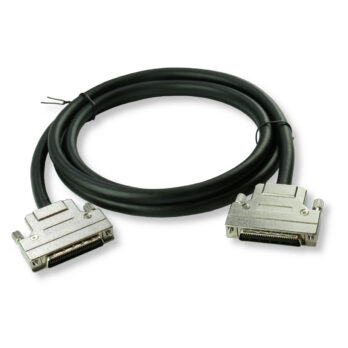

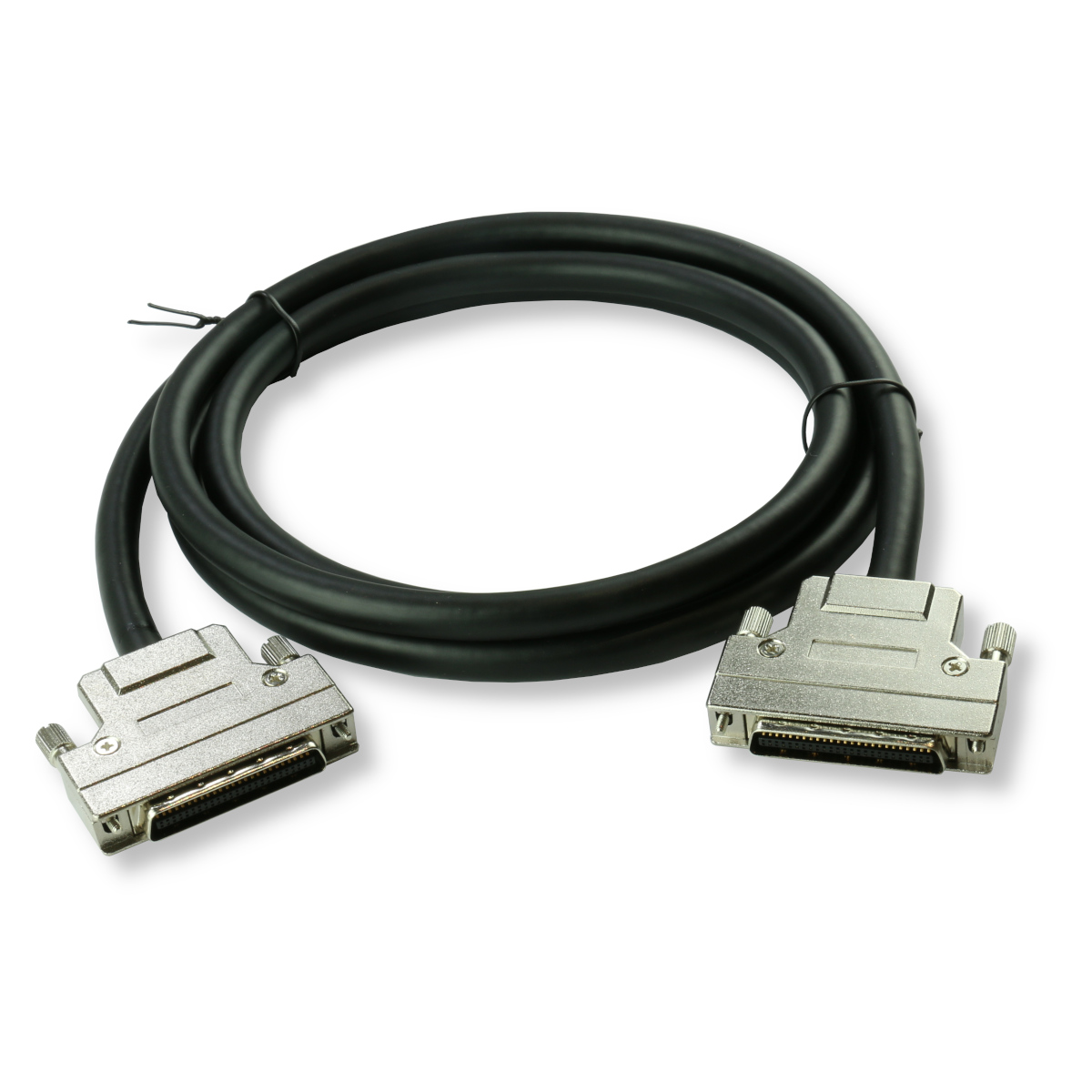

TA116
MDR50 Cable, 1.8 m
- MDR50 male to MDR50 male connector
- Twisted pairs
- Cable length: 1.8 m
- Maximum voltage is 30 V DC
PRODUCT VARIATIONS
| TA116-10R |
MDR50 Cable
MDR50 to MDR50 connector; 1.8m; 30 V DC |
